Mobile with integrated counter weights without anchoring (to be tested at each assembly)
Projection 2m25 – Circle height 3m05
– Metacrylate panel 1m80 x 1m05 x 15mm mounted on a peripheral metal frame with direct ring take-up
– Retractable ring at 105kg ref B3179
– Galvanized steel metal frame with goal mounted on 2 hinges for easy assembly by means of a manual reel.
– Heavy base width 1m20 – Depth 2m20 — With independent ballast of 640kg, dimensions 1m18 x 0m60 x Ht 0m40 to be embedded from the rear and manoeuvrable with a pallet jack.
– Front base mounted on 2 large fixed wheels for displacement, retractable for use by 2 height adjustable feet.
– With bottom protection of panel ref B3167 to be screwed of 1m80 with 2 returns of 0m40.
– Front padding in black- thickness 5cm of 2m30 x 1m30 + 2 returns of 1m90 x 1m50 with place for 12″ shot clock (in option)

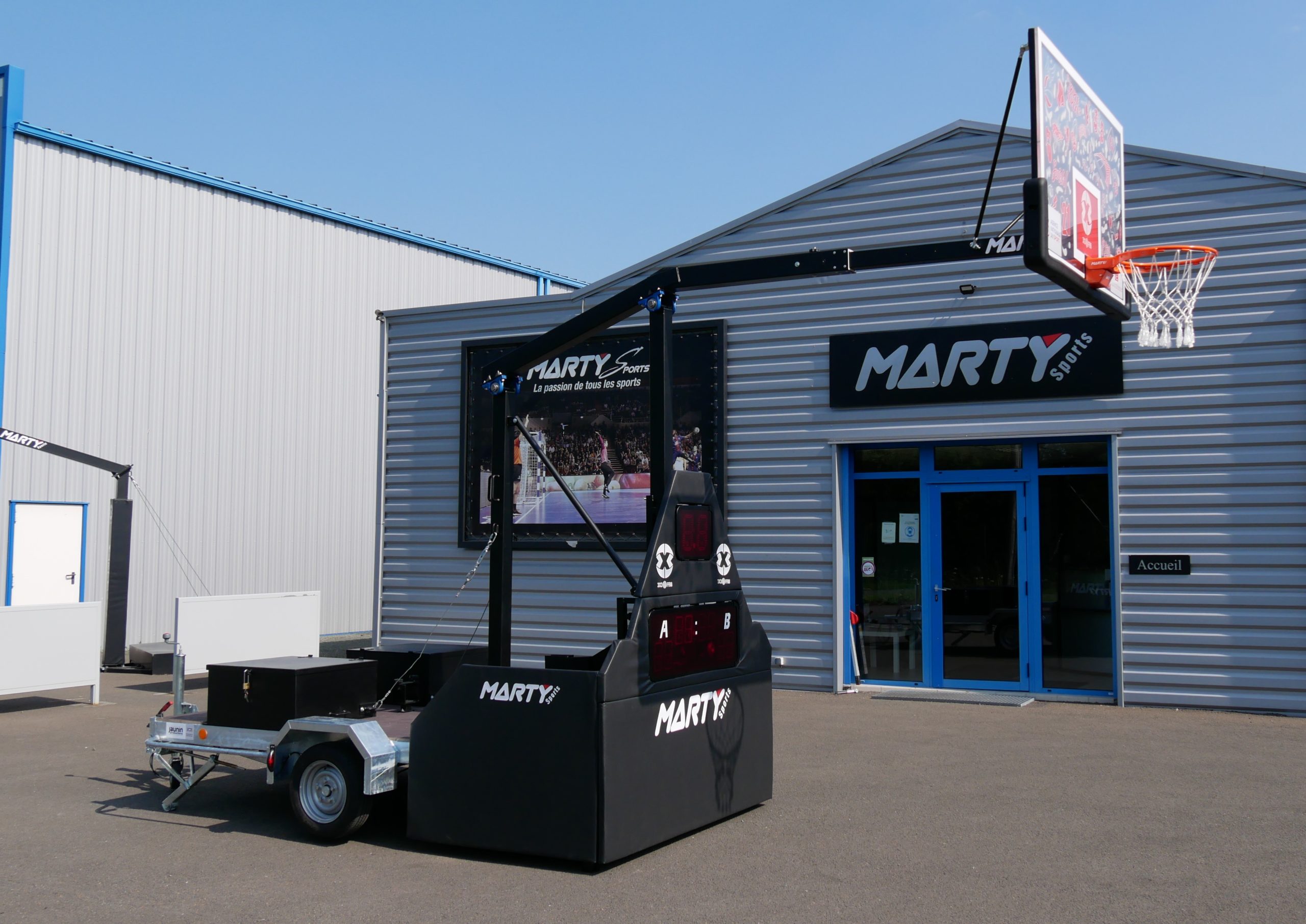

B3300 installed on a single axle trailer
Trailer dimensions: Platform 4200mm x 1900mm
Length: 5225mm
Width: 2328mm
Total weight: 1650Kg
Requires an E Permit
The complete set
