To solve out space problems and respect gauge according to frame up to EN1270.

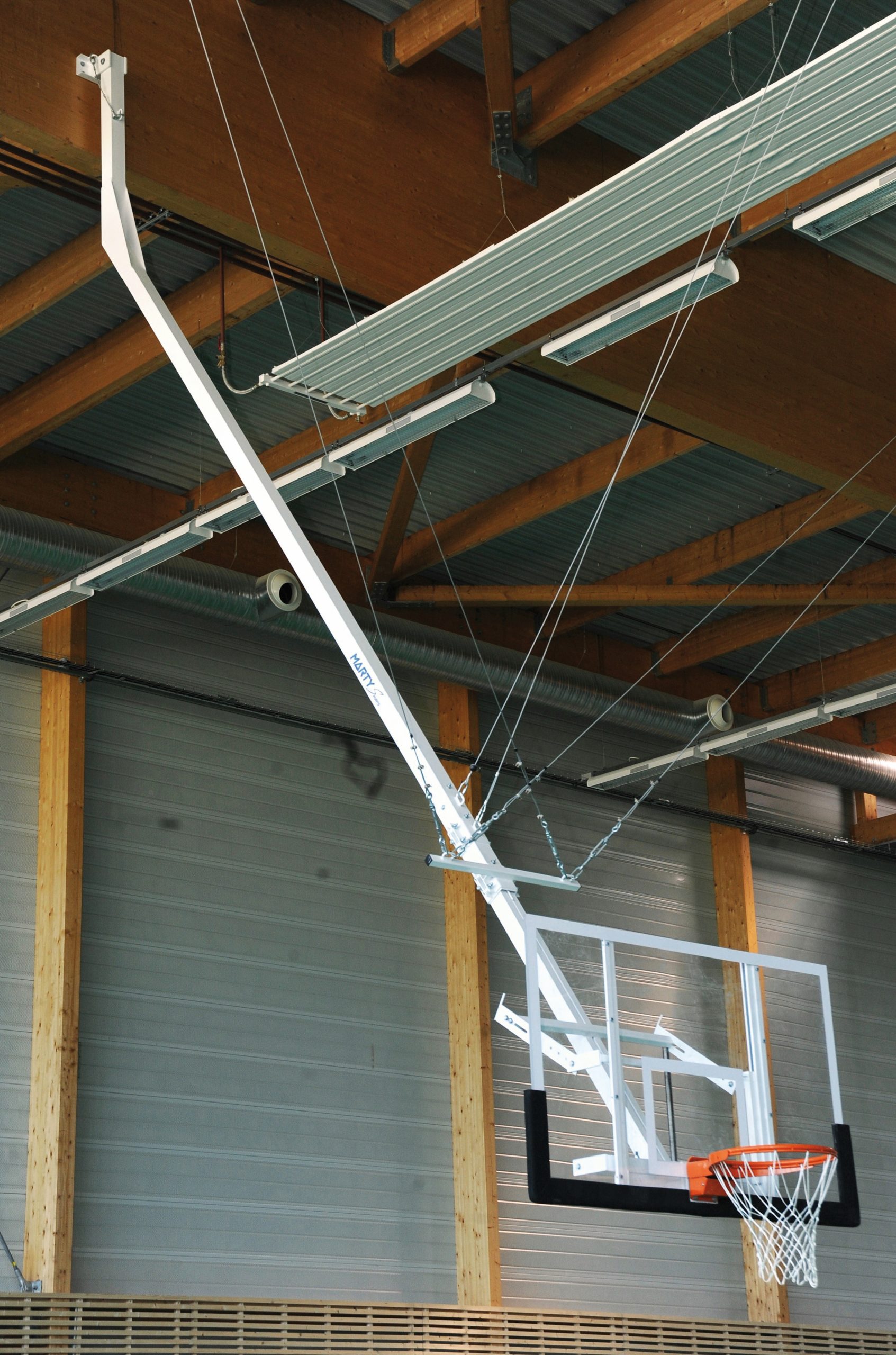

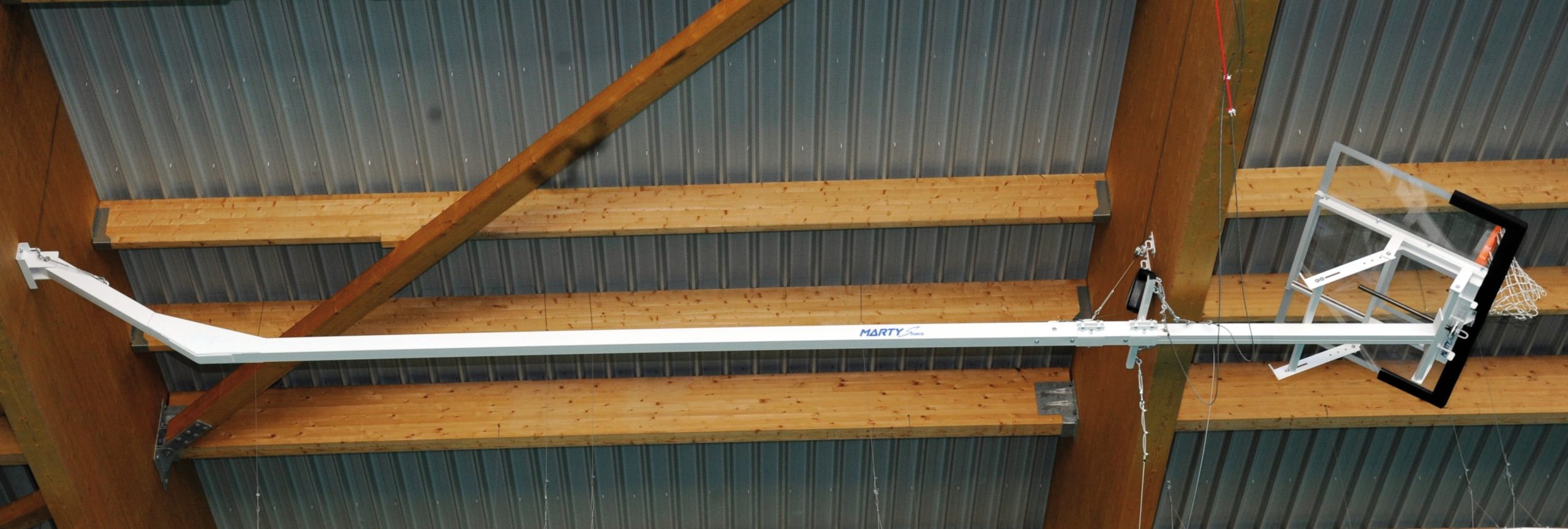

100mm square tubular steel frame, adjustable projection with a DEFINITIVE LOCKING OF PROJECTION.
FIXED SINGLE TUBE but angled so that the all set backboard/ring get above trusses.
INCLUDED :
– Main fixing articulated for tubular metallic frame
– Fastening on pulleys
– 4 maintaining cables on each goal giving a really good stability and better loads sharing out + fastening for maintaining cable (B3022) and fixings for cable on roof
– Elevating wire made of 5mm galvanised steel (B3016) + elevating fixings adjustable on frame (B3021)
– Set of pulleys made of steel Ø100mm mounted on ball bearings + adapted fixings
– Tightening set (wire-strainer, clamps, links, fastening devices…)
Unit
